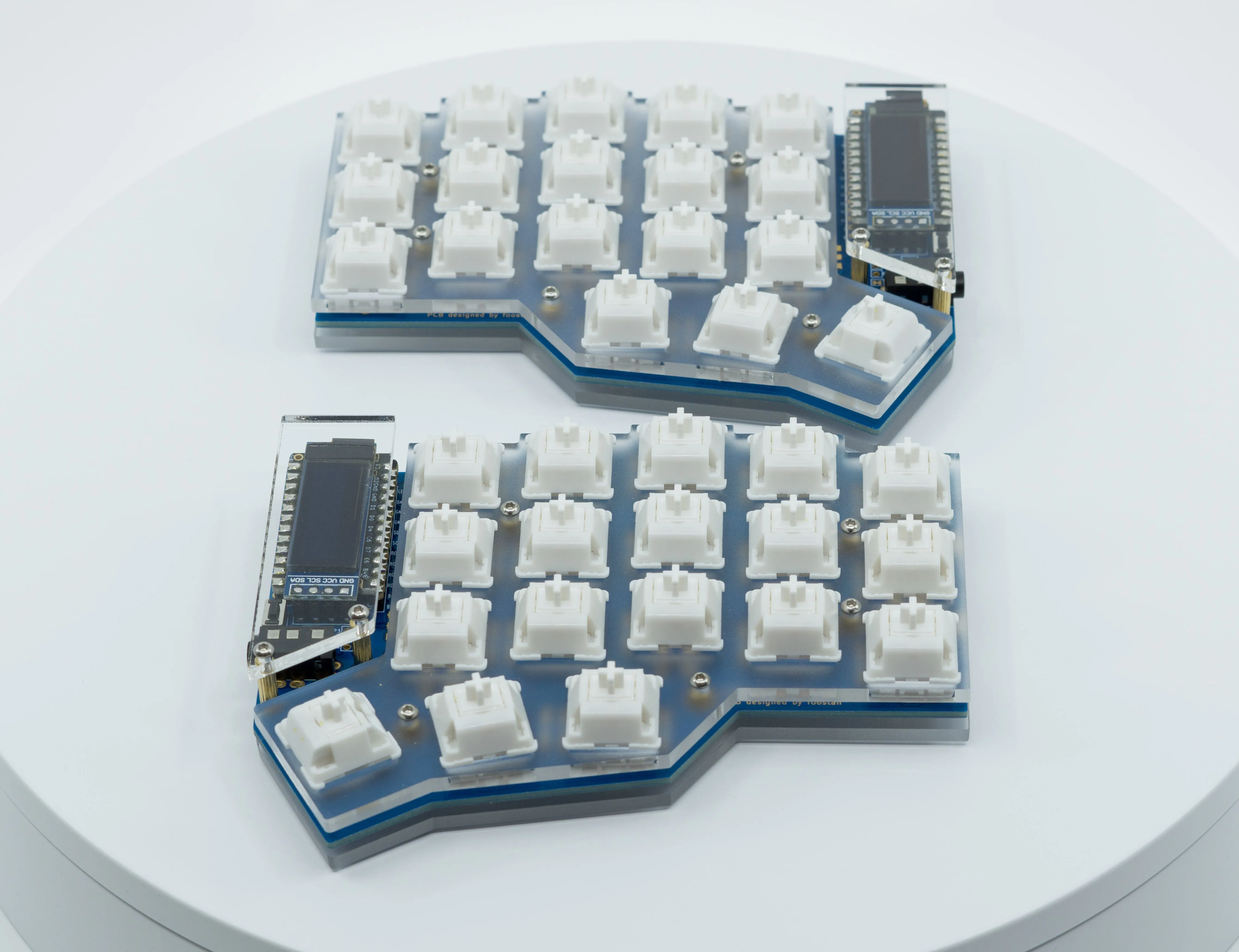

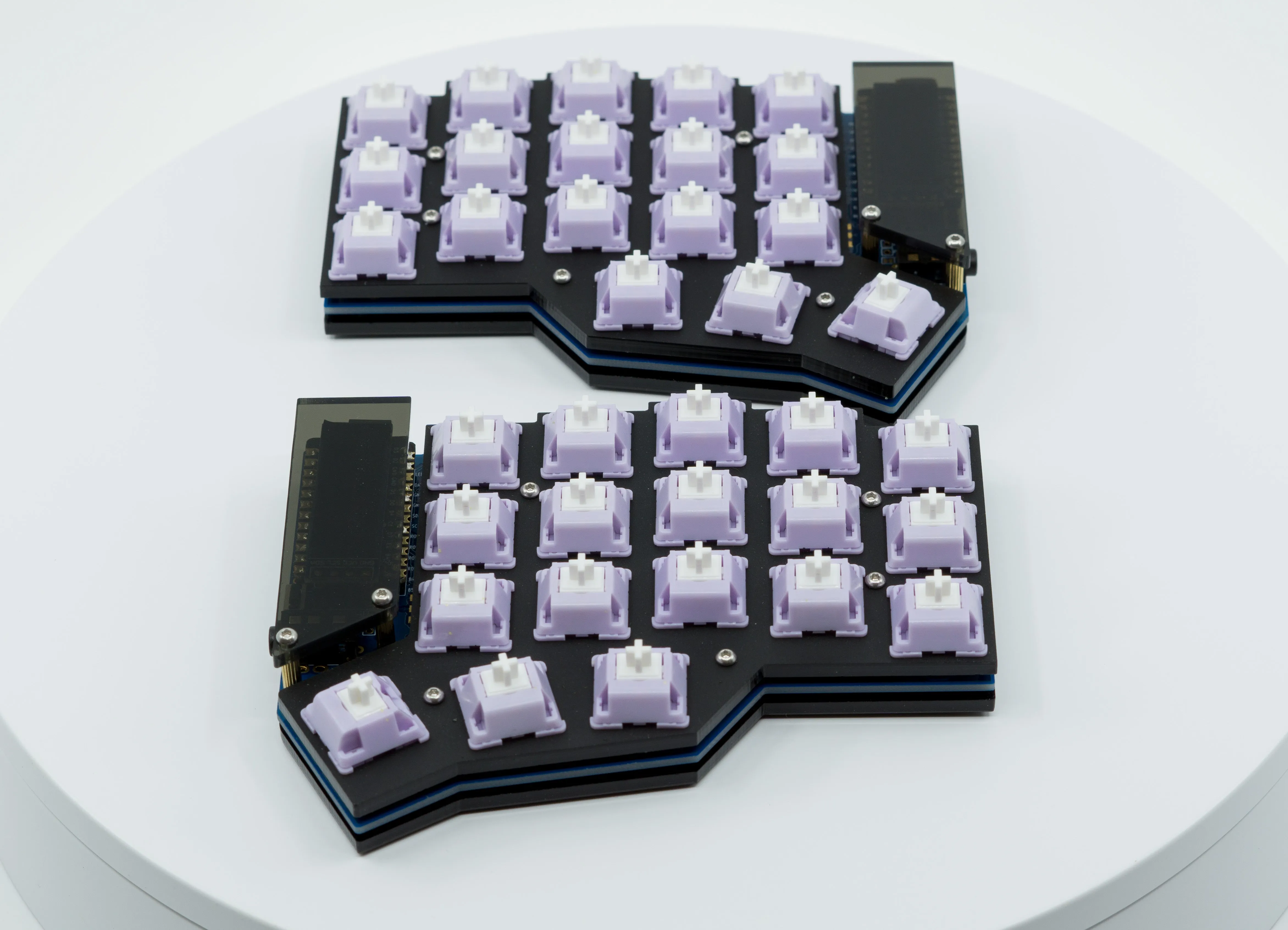

The Mini Corne Technician keyboard cases are laser cut from 3mm acrylic. Each case includes matching OLED covers as well as hardware needed to assemble the case.
Information about the CRKBD keyboard along with the source files from the designer can be found on the . QMK key mappings and firmware can be found .
The following components are included with the case.
| 2 | Switch Plate |
| 2 | Bottom Plate |
| 2 | OLED Cover |
| 4 | M2 Spacer for OLED Covers |
| 10 | M2 Spacer for Switch/Bottom Plates |
| 28 | M2 Screw |
| 10 | 3M Rubber Bumper |
PCB, switches, MCU, and OLED screens must be purchased separately.
Compatibility
- Mini Corne cases are not compatible with Corne v3.0.1 PCBs because the PCBs do not have outer columns that can be removed.
- Kailh Choc switches can be used with this case, however the 3mm switch plate is taller than the height of Choc switches. Switches will be slightly higher than the PCB.
- Corne Classic PCB is preferred for Choc builds.
